High Reliability Horizontal Drilling Machine DILONG Hdd Drill

Product Categories

Beijing Silk Road Enterprise Management Services Co.,LTD

Contact Now

Name: High Reliability Horizontal Drilling Machine DILONG Hdd Drill
Brand: DILONG
Price: 1 USD

Brand Name : DILONG

Model Number : DL450B-RK1

Place of Origin : NANJING CHINA

MOQ : ONE SET

Price : NEED DISCUSS

Payment Terms : L/C, T/T

Supply Ability : 100 Units PER YEAR

Delivery Time : After advance payment in 7 days

Packaging Details : HC can contain 1 set machine and spare HDD PARTS

Certification : ISO9001

ENGINE : kUMMINS 179 KW

THRUST : 450 KN

PULLBACK : 450 KN

TORQUE : 16000 N.M

ROTARY SPEED : 125 RPM

MUD PUMP : 450 L/MIN

Contact Now

DL450B-RK1 horizontal directional drilling rig machinery DILONG

KEY POINT:

L450B-RK1, the push pull system is multistage double rods cylinder drive system, the advantages are as follow:

1. High reliability

2. Best durability

3. Best failure delay

4. Best system security

5. Fast speed for rock drilling.

Specification:

Engine Power	KW	179/2200	Main machine size	mm	7350x2200x2485
Max Thrust force	KN	450	Weight	T	~11
Max Pullback force	KN	450	Diameter of drilling rod	mm	Φ89(Outer rod) Φ50(Inner rod)
Max Torque	N.M	16000(Outer rod) 2500(Inner rod)	Length of drilling rod	m	3
Max Rotary speed	rpm	125(Outer rod) 150(Inner rod)	Max diameter of pullback pipe	mm	φ150～φ1000(Earth) Φ300～φ600(Rock)
Max Moving speed of power head	m/min	30	Max construction length	m	～600
Max Mud pump flow	L/min	450	Incidence Angle	°	10～22
Max Mud pressure	Mpa	8±0.5	Climing Angle	°	12

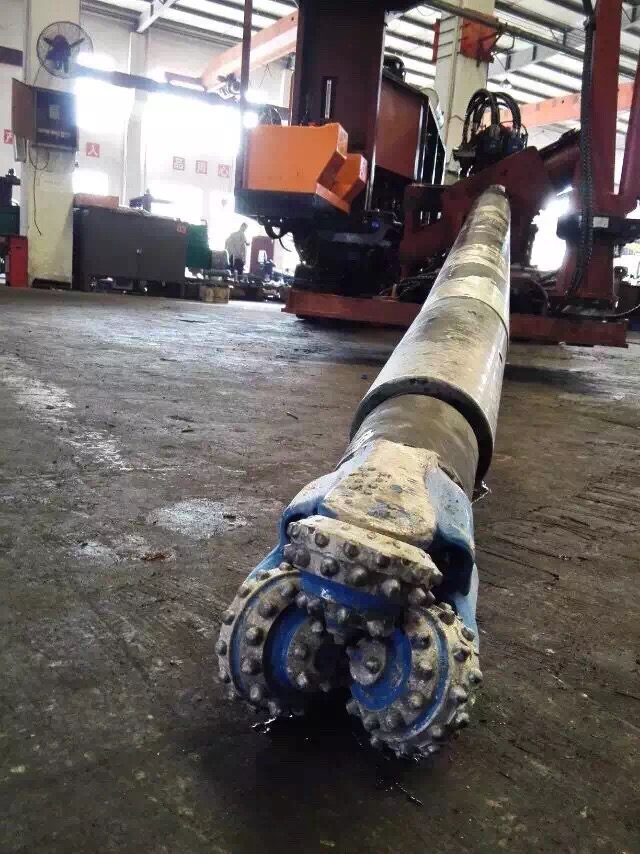

Main parts:

Working site:

High Reliability Horizontal Drilling Machine DILONG Hdd Drill

Product Tags:

horizontal boring machine
