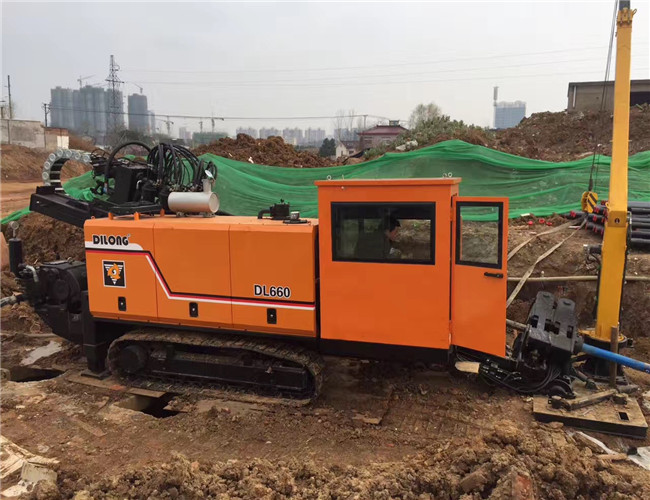

66 Ton Hdd Directional Drilling / Trenchless Boring Machine Ratation Hydraulic System
INTRODUCES
1,With the use of closed loop of the main rotation hydraulic system ,DL660*23 cralwer integrated horizontal directional drilling machine has better working efficiency ,
2, it has 194Kw engine .its forced air cooling system enables it to work reliably for a long time.
3,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.
4,The ratation hydraulic system is of closed loop and the high-strength drill pipe holder is sent on the outer side of the crossarm,featuring simplicity ,reliability,easy assembly&disassembly of drill pipe and high efficiency with the use of 2t hoist.
5,The top-end PALL filter can ensure cleanness of the hydraulic system and long service life of the equipment.Optional force adding module is available for additional 33t force.
MAIN TECHNICAL PARAMETERS
| Engine | kw | 194/2200 | Dimension(L*W*H) | mm | 9000*2350*2800 |
| Max.thrust force | KN | 660/990 | Weight | T | 14.5 |
| Max.pullback force | KN | 660/990 | Diameter of drill rod | mm | Φ89 |
| Max.torque | N.m | 23800 | Lendht of drill rod | m | 4.5 |
| Max.Rotary speed | rpm | 110 | Max diameter of pullback pipe | mm | Φ1200 |
| Max.Moving speed of power head | m/min | 29.5 | Max pullback pipe length | m | ~900 |
| Max.mud puump flow | L/min | 600 | Incidence angle | . | 12~20 |
| Max.mud pressure | Mpa | 10±0.5 | Climbing angle | . | 14
|

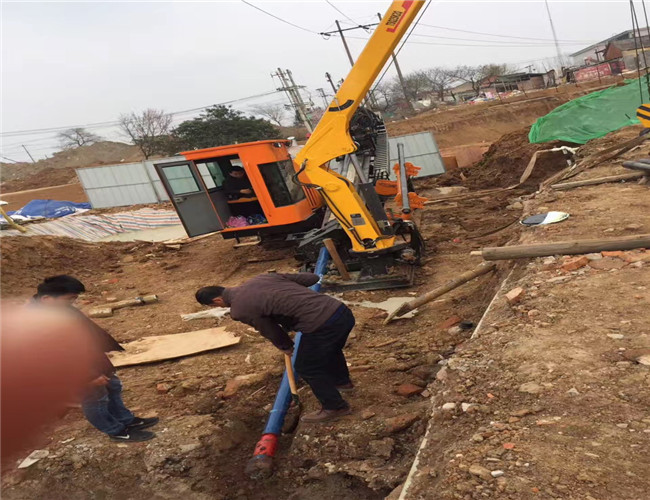

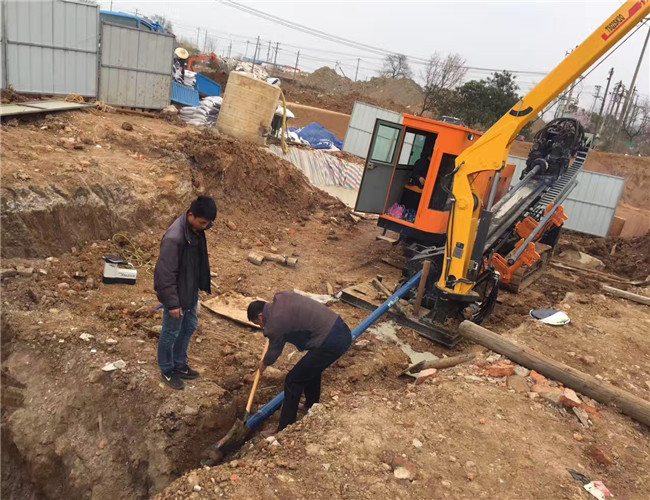

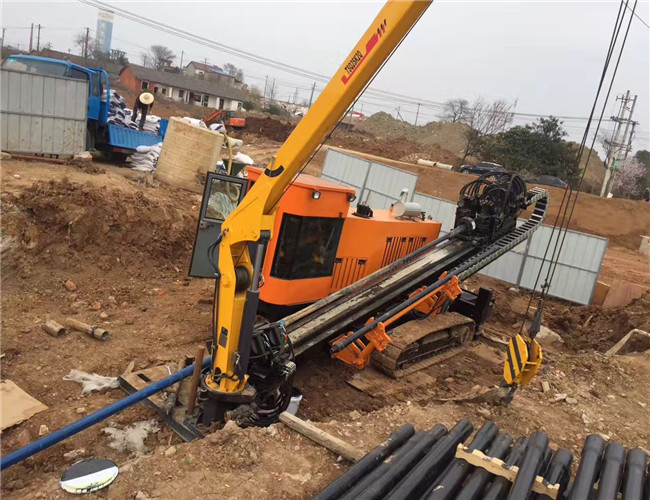

Earthworm cooperate falcon instruments, DL660, through the luan river the p.i. Length 370 meters, the depth of 17 meters, 370 meters or so weak weathering, soil layer combination of hard and soft construction more difficult.
