8T Directional Boring Machine For Sale Cable Laying Equipment DL80 For Trenchless Drilling

Brand Name : DILONG

Model Number : DL80

Place of Origin : NANJING

MOQ : one set

Price : NEED DISCUSS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100 Units PER YEAR

Delivery Time : After advance payment in 7 days

Packaging Details : HC can contain 1 set machine and spare HDD PARTS

COLOUR : YELLO

Weight : 4.2T

Dimension : 4000*1597*2220

Contact Now

8T Horizontal Drilling Machine cable laying equipment DL80 for trenchless drilling

INTRODUCES

With the use of four-pump hydraulic system (open constant-power system),DL80 crawler integrated hrizontal directional drilling machine has better working efficiency ,and it has 47.3Kw engine .its forced air cooling system enables it to work reliably for long time. Additionally ,its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.

MAIN TECHNICAL PARAMETERS

Engine	KW	47.3/2200	Dimension(LWH)	MM	400015972220
Max.thrust force	KN	80	Weight	T	4.2
Max.pullback force	KN	80	Diameter of drill rod	MM	Φ42
Max.torque	N.m	2200	Lendht of drill rod	M	1.5
Max.rotary speed	rpm	190	Max diameter of pullback pipe	MM	Φ200-Φ500
Max.Moving speed of power head	m/min	33	Max pullback pipe length	m	~80
Max.mud pump flow	L/min	40	Incidence Angle	.	8~20
Max.mud pressure	Mpa	3.5±0.5	climbing Angle	.	14

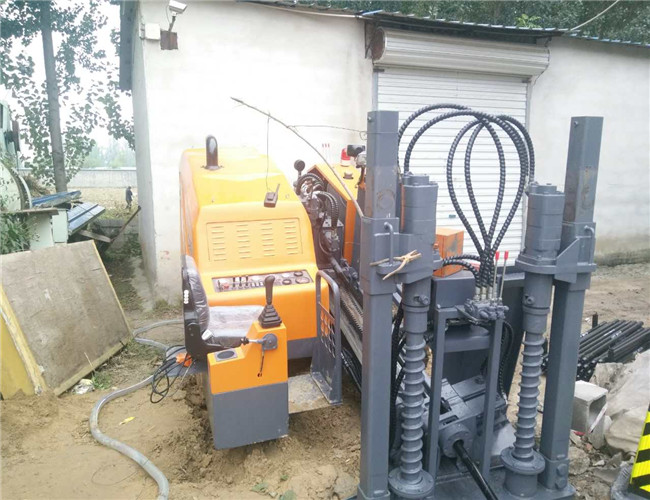

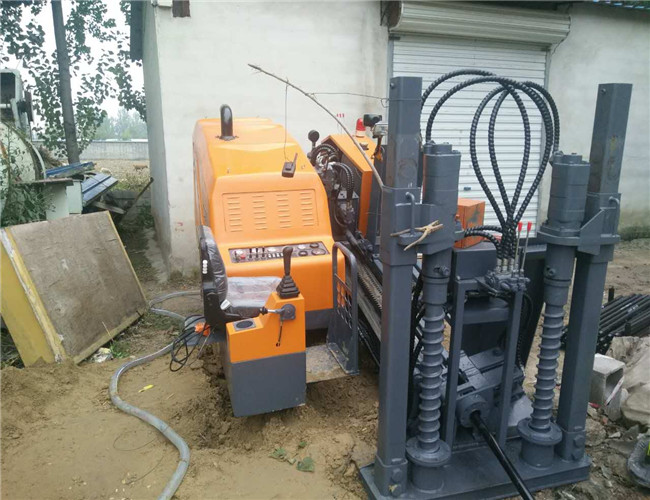

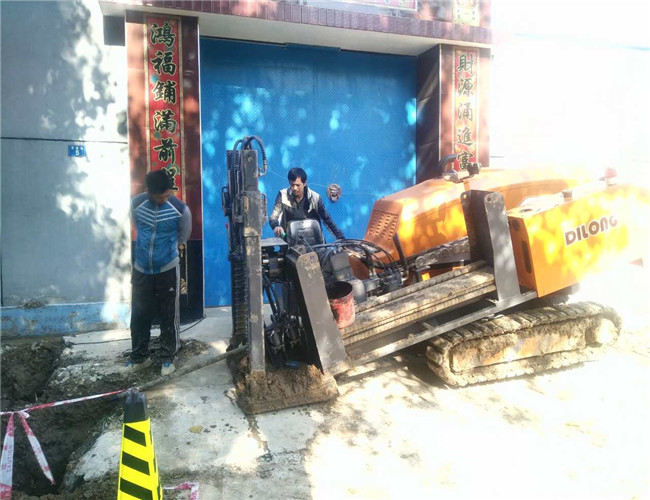

DL80 MACHINE IN THE CONSTRUCTION SITE

8T Directional Boring Machine For Sale Cable Laying Equipment DL80 For Trenchless Drilling
