Rotation Hydraulic System HDD Drilling Machine Pipe Pulling 120RPM

Name: Rotation Hydraulic System HDD Drilling Machine Pipe Pulling 120RPM
Brand: DILONG
Price: 1 USD

China Rotation Hydraulic System HDD Drilling Machine Pipe Pulling 120RPM wholesale

Brand Name : DILONG

Model Number : DL660S

Place of Origin : NANJING

MOQ : one set

Price : NEED DISCUSS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100 Units PER YEAR

Delivery Time : After advance payment in 7 days

Packaging Details : HC can contain 1 set machine and spare HDD PARTS

COLOUR : YELLOW

WEIGHT : 12.8T

THRUST : 660KN

PULLBACK : 660 KN

DIMENSION : 6872*2277*2320

ROTARY SPEED : 120RPM

Contact Now

Rotation Hydraulic System HDD Drilling Machine Pipe Pulling 120RPM

INTRODUCE

With the use of closed loop of the main rotation hydraulic system ,DL660*18 cralwer integrated horizontal directional drilling machine has better working efficiency ,and it has 194Kw engine .its forced air cooling system enables it to work reliably for a long time. Additionally ,its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.The ratation hydraulic system is of closed loop and the high-strength drill pipe holder is sent on the outer side of the crossarm,featuring simplicity ,reliability,easy assembly&disassembly of drill pipe and high efficiency.The top-end PALL filter can ensure cleanness of the hydraulic system and long service life of the equipment.

MAIN TECHNICAL PARAMETERS

Engine	kw	194/2200	Dimension(LWH)	mm	687222772320
Max.thrust force	KN	660	Weight	T	12.8
Max.pullback force	KN	660	Diameter of drill rod	mm	Φ83
Max.torque	N.m	18000	Lendht of drill rod	m	3
Max.Rotary speed	rpm	120	Max diameter of pullback pipe	mm	Φ800
Max.Moving speed of power head	m/min	30	Max pullback pipe length	m	~900
Max.mud puump flow	L/min	450	Incidence angle	.	14~22
Max.mud pressure	Mpa	8±0.5	Climbing angle	.	14

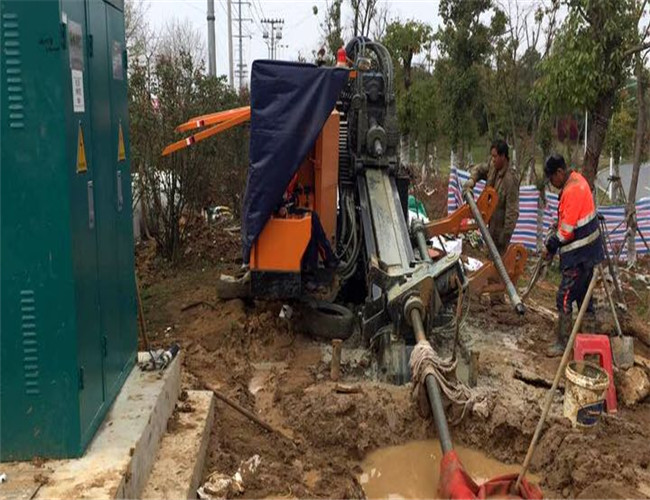

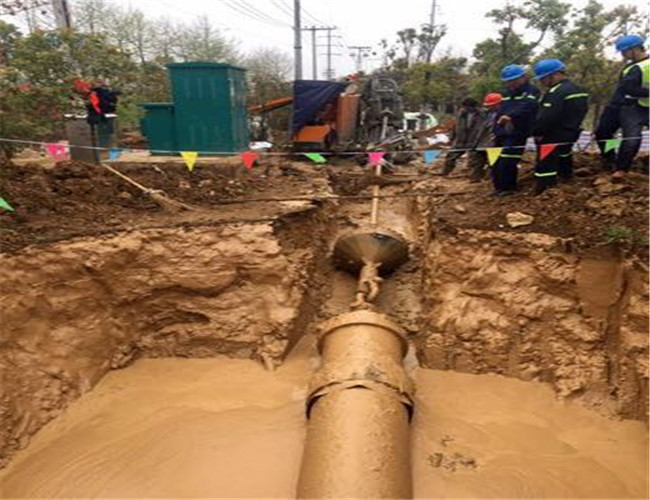

DL660S MACHINE IMAGES IN THE SITE

Rotation Hydraulic System HDD Drilling Machine Pipe Pulling 120RPM

Whatsapp number:008618936869890

HDD MACHINE, NO DIG MACHINE, DRILLING MACHINE
