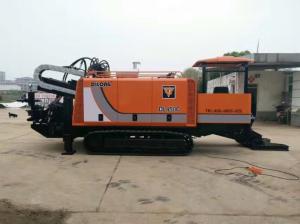

45T Underground Hdd Drilling Equipment / Directional Boring Equipment

Name: 45T Underground Hdd Drilling Equipment Directional Boring Equipment
Brand: DILONG
Price: 1 USD

China 45T Underground Hdd Drilling Equipment / Directional Boring Equipment wholesale

Brand Name : DILONG

Model Number : DL450C

Place of Origin : NANJING

MOQ : one set

Price : NEED DISCUSS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100 Units PER YEAR

Delivery Time : After advance payment in 7 days

Packaging Details : HC can contain 1 set machine and spare HDD PARTS

COLOUR : YELLOW

WEIGHT : 12.8T

DIMENSION : 7400*2300*2485

INCIDENCE ANGLE : 12~25

CLIMBING ANGLE : 14

THRUST : 450KN

Contact Now

45T Underground Hdd Drilling Equipment / Directional Boring Equipment

INTRODUCES

With the use of five-pump hydraulic system ,DL450C drilling machine has better working efficiency and rational power distribution .its forced air cooling system enables it to work reliably for long time. Additionally ,its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.The oil cylinder direct-driven pull-push system employed has such features as good stability at low speed and low power loss.The patented holder can realize automatic centering while holding the drill pipe to protect drill pipe and holder in various adverse conditions

MAIN TECHNICAL PARAMETERS

Engine	kw	194/2200	Dimension(LWH)	mm	740023002485
Max.thrust force	KN	450	Weight	T	12.8
Max.pullback force	KN	450	Diameter of drill rod	mm	Φ83
Max.torque	N.m	18000	Lendht of drill rod	m	3
Max.Rotary speed	rpm	140	Max diameter of pullback pipe	mm	Φ150-Φ1000
Max.Moving speed of power head	m/min	30	Max pullback pipe length	m	~600
Max.mud puump flow	L/min	450	Incidence angle	.	12~25
Max.mud pressure	Mpa	8±0.5	Climbing angle	.	14

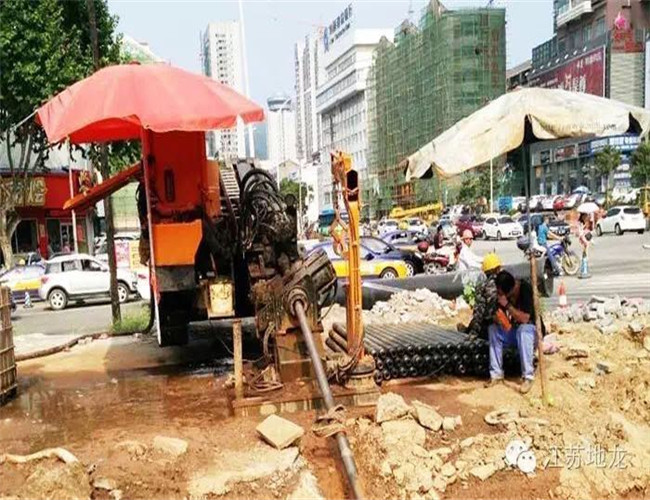

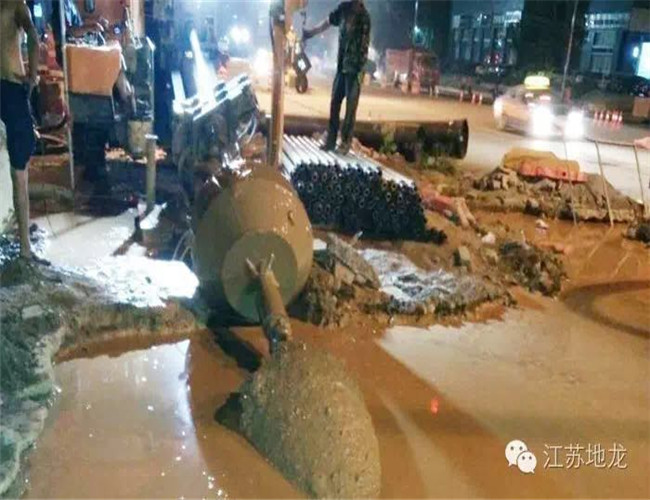

DL450C MACHINE IMAGES IN THE SITE 45T Underground Hdd Drilling Equipment / Directional Boring Equipment

45T Underground Hdd Drilling Equipment / Directional Boring Equipment
