DL200A HDD Drilling Machine With Auto Anchoring And Auto Loading

Name: DL200A HDD Drilling Machine With Auto Anchoring And Auto Loading
Brand: DILONG
Price: 1 USD

Brand Name : DILONG

Model Number : DL200A

Place of Origin : NANJING

MOQ : one set

Price : NEED DISCUSS

Payment Terms : D/P, D/A, L/C, T/T

Supply Ability : 100 Units PER YEAR

Delivery Time : After advance payment in 7 days

Packaging Details : HC can contain 1 set machine and spare HDD PARTS

COLOUR : YELLOW

WEIGHT : 7.5

Max.thrust force : 200

Max.pullback force : 200

ENGINE : CUMMINS

MUD PUMP FLOW : 240L/MIN

Contact Now

DL200A HDD Drilling Machine With Auto Anchoring And Auto Loading

ADVANTAGES

With the use of four-pump hydraulic system ,DL200 drilling machine has better working efficiency and rational power distribution .its forced air cooling system enables it to work reliably for long time. Additionally ,its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.

MAIN TECHNICAL PARAMETERS

Engine	KW	110/2200	Dimension(LWH)	MM	640020502350
Max.thrust force	KN	200	Weight	T	7.5
Max.pullback force	KN	200	Diameter of drill rod	MM	Φ60
Max.torque	N.m	5900	Lendht of drill rod	M	3
Max.rotary speed	rpm	180	Max diameter of pullback pipe	MM	Φ150-Φ700
Max.Moving speed of power head	m/min	30	Max pullback pipe length	m	~300
Max.mud pump flow	L/min	240	Incidence Angle	.	10~22
Max.mud pressure	Mpa	7±0.5	climbing Angle	.	14

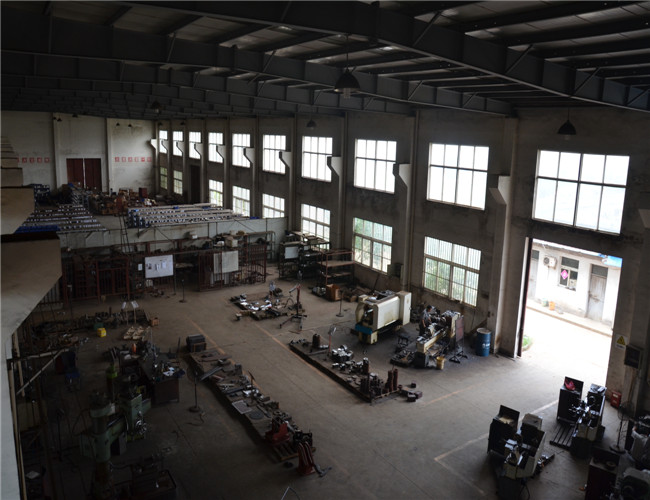

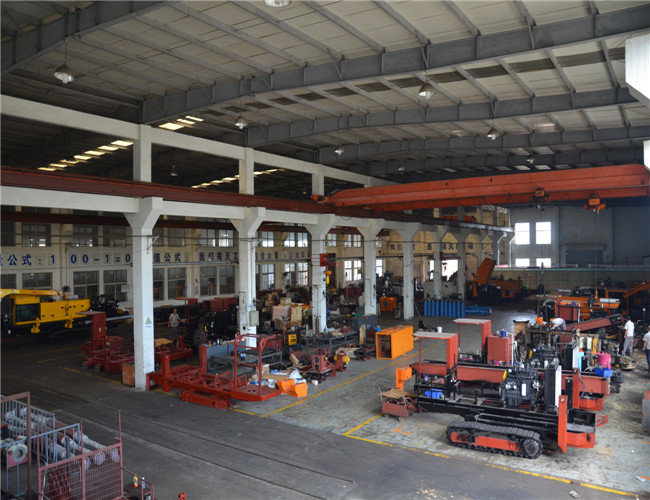

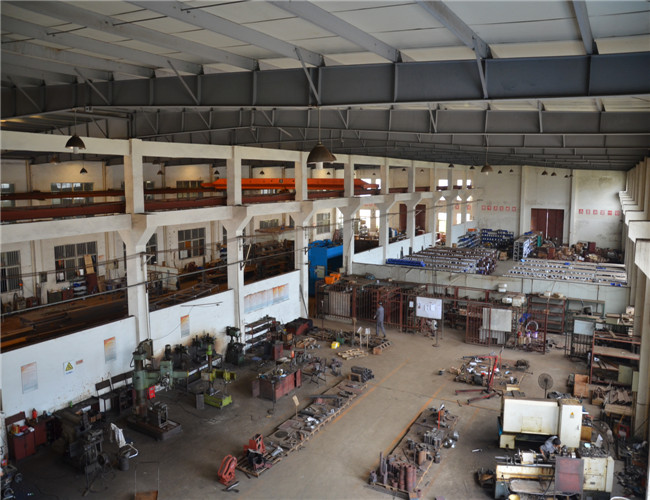

FACTORY SHOW

DL200A HDD Drilling Machine With Auto Anchoring And Auto Loading

Whatsapp number:008618936869890

HDD MACHINE, NO DIG MACHINE, DRILLING MACHINE
