High Strength 66T Hdd Horizontal Directional Drilling Heavy Duty DL660

Name: High Strength 66T Hdd Horizontal Directional Drilling Heavy Duty DL660
Brand: DILONG
Price: 1 USD

Brand Name : DILONG

Model Number : DL660

Place of Origin : NANJING

MOQ : ONE SET

Price : NEED DISCUSS

Payment Terms : L/C, L/C, D/A, D/P, T/T

Supply Ability : 100 Units PER YEAR

Delivery Time : After advance payment in 7 days

Packaging Details : HC can contain 1 set machine and spare HDD PARTS

COLOUR : YELLO

WEIGHT : 14.5T

DIMENSION : 9000*2350*2800

MUD PUMP FLOW : 450L/MIN

MUD PRESSURE : 8±0.5

TORQUE : 18000N.m

Contact Now

High Strength 66T Hdd Horizontal Directional Drilling Heavy Duty DL660

ADVANTAGE

1, With the use of closed loop of the main rotation hydraulic system ,DL660*23 cralwer integrated horizontal directional drilling machine has better working efficiency .

2,It has 194Kw engine .its forced air cooling system enables it to work reliably for a long time.

3, Its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.

4,The ratation hydraulic system is of closed loop and the high-strength drill pipe holder is sent on the outer side of the crossarm,featuring simplicity ,reliability,easy assembly&disassembly of drill pipe and high efficiency with the use of 2t hoist.

MAIN TECHNICAL PARAMETERS

Engine	kw	194/2200	Dimension(LWH)	mm	900023502800
Max.thrust force	KN	660/990	Weight	T	14.5
Max.pullback force	KN	660/990	Diameter of drill rod	mm	Φ89
Max.torque	N.m	23800	Lendht of drill rod	m	4.5
Max.Rotary speed	rpm	110	Max diameter of pullback pipe	mm	Φ1200
Max.Moving speed of power head	m/min	29.5	Max pullback pipe length	m	~900
Max.mud puump flow	L/min	600	Incidence angle	.	12~20
Max.mud pressure	Mpa	10±0.5	Climbing angle	.	14

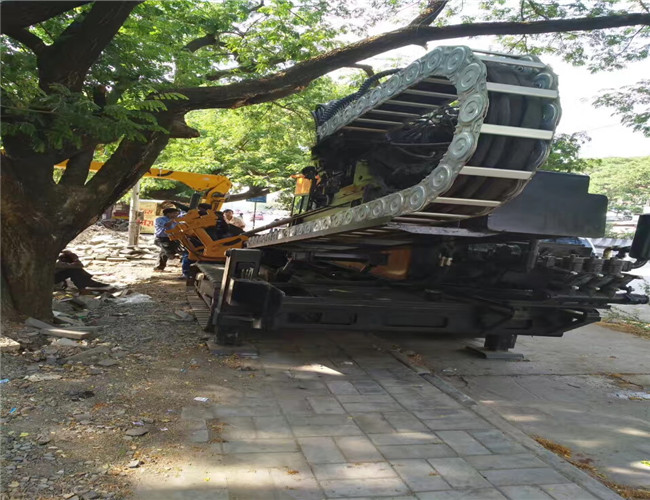

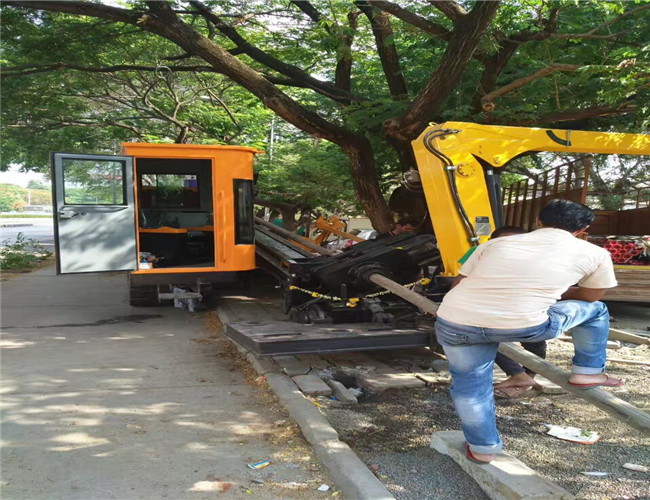

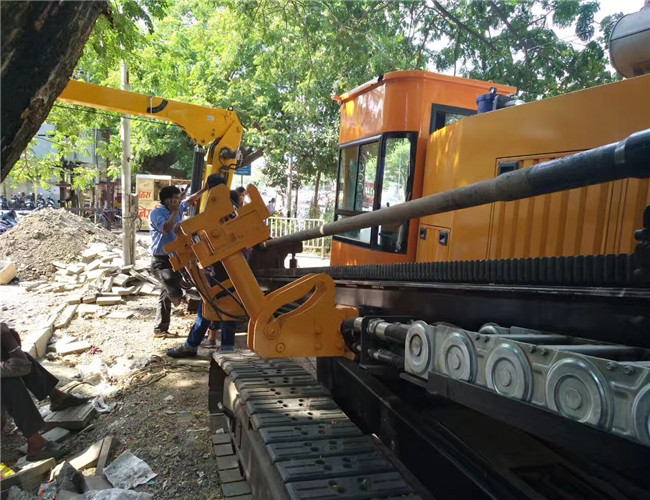

DL660 CONSTRUCTION IN INDIA

High Strength 66T Hdd Horizontal Directional Drilling Heavy Duty DL660

Whatsapp number:008618936869890

HDD MACHINE, NO DIG MACHINE, DRILLING MACHINE
