66/99 TON Horizontal Directional Drilling Machine Whole Track Directional Drilling Rig

Name: 6699 TON Horizontal Directional Drilling Machine Whole Track Directional Drilling Rig
Brand: DILONG
Price: 1 USD

China 66/99 TON Horizontal Directional Drilling Machine Whole Track Directional Drilling Rig wholesale

Brand Name : DILONG

Model Number : DL660

Place of Origin : CHINA

Price : NEED DISCUSS

Delivery Time : After advance payment in 7 days

Supply Ability : 100 Units PER YEAR

Certification : ISO9001

MOQ : 1 SET

Packaging Details : 40 FR CONTAINER FOR FULL SET

ENGINE : CUMMINS 194 KW

THRUST : 660/990 KN

PULLBACK : 660/990 KN

TORQUE : 23800 N.M

ROTARY SPEED : 110 RPM

MUD PUMP : 600 L/MIN OR 800 L/MIN

Contact Now

66/99 TON Horizontal Directional Drilling Machine Whole Track Directional Drilling Rig

Machine features
1. DL660 drilling rig is an integral horizontal directional drilling track.

2. The main rotating close loop hydraulic system so that the machine has higher working efficiency.

3. 194Kw engine power, strong wind cooling system can work reliably for a long time even in the hot area.

4. It has the advantages of compact structure and excellent climbing ability to transfer and transport equipment more convenient and the use of multi gear stepless speed regulating function in different work conditions can make efficient use of the rig, greatly improving the work efficiency.

Specification:

Engine Power	KW	194/2200	Main machine size	mm	9000x2350x2800
Max Thrust force	KN	660/990	Weight	T	14.5
Max Pullback force	KN	660/990	Diameter of drilling rod	mm	Φ89
Max Torque	N.M	23800	Length of drilling rod	m	4.5
Max Rotary speed	rpm	110	Max diameter of pullback pipe	mm	φ150～φ1200
Max Moving speed of power head	m/min	29.5	Max construction length	m	～900
Max Mud pump flow	L/min	600	Incidence Angle	°	12～20
Max Mud pressure	Mpa	10±0.5	Climing Angle	°	14

Main parts:

Name	Manufacture	Standard	Quantity

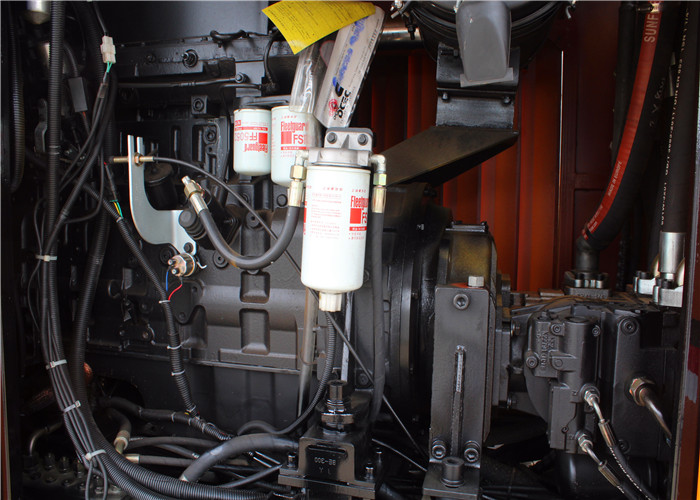

Engine	KUMMINS (CHINA)	194KW	1
Pump	SAUER (USA)PERMCO (USA)		2
Valve	WOLFFLY (Italy), Lite(CHINA)		2
Hyraulic Motor	Eton (USA)	6K	6
Mud Pump	HengYang (China)	600	1

More details:

66/99 TON Horizontal Directional Drilling Machine Whole Track Directional Drilling Rig

Whatsapp number:008618936869890
