450Ton Horizontal Directional Drilling Equipment Pipe Pulling HDD Machine

Name: 450Ton Horizontal Directional Drilling Equipment Pipe Pulling HDD Machine
Brand: DILONG
Price: 1 USD

China 450Ton Horizontal Directional Drilling Equipment Pipe Pulling HDD Machine wholesale

Brand Name : DILONG

Model Number : DL4500

Place of Origin : NANJING

MOQ : ONE SET

Price : NEED DISCUSS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100 Units PER YEAR

Delivery Time : After advance payment in 7 days

Packaging Details : HC can contain 1 set machine and spare HDD PARTS

COLOUR : YELLOW

DIMENSION : 17000*3280*3000

WEIGHT : 60T

ENGINE : CUMMINS

PULLBACK FORCE : 4500KN

MUD PRESSURE : 10±0.5Mpa

Contact Now

450Ton Horizontal Drilling Machine pipe pulling HDD machine

INTRODUCES

With the use of closed loop of tha main rotation hydraulic system ,DL3000cralwer integrated horizontal directional drilling machine has better working efficiency,and it has advanced automatic control system enabling more rational power distribution of the engine.its forced air cooling system enables it to work reliably for long time. Additionally ,its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.The holder is of whole-travel type and its front and rear clamps are separable for various adverse conditions.The high-strength drill pipe holder is sent on the middle of the crossarm,featuring simplicity ,reliability,easy assembly&disassembly of drill pipe and high efficiency with the use of 5t hoist .The key parameters of the engine,main hydraulic system pressure and filter etc.can be input automatic controller for effective equipment safety protection.The machine is exported to India

MAIN TECHNICAL PARAMETERS

Engine	kw	559/1800	Dimension(LWH)	mm	1882039653500
Max.thrust force	KN	4500	Weight	T	60
Max.pullback force	KN	4500	Diameter of drill rod	mm	Φ140
Max.torque	N.m	120000	Lendht of drill rod	m	9.6
Max.Rotary speed	rpm	70	Max diameter of pullback pipe	mm	Φ1600
Max.Moving speed of power head	m/min	30	Incidence angle	.	9~15
Max.mud puump flow	L/min		Climbing angle	.	~14
Max.mud pressure	Mpa	10±0.5	Max pullback pipe length	m	~2000

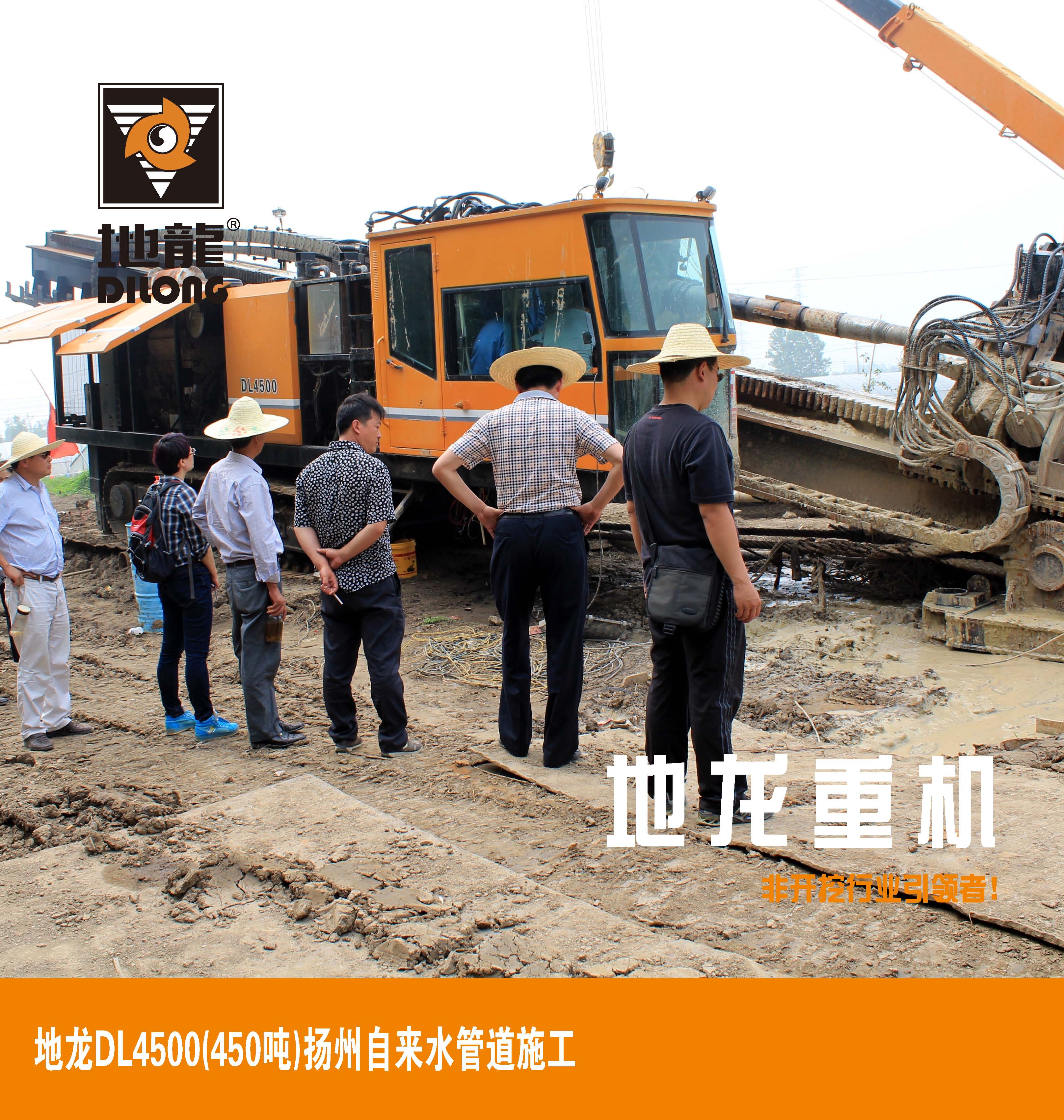

DL4500MACHINE WORKS IN YANGZHOU

450Ton Horizontal Directional Drilling Equipment Pipe Pulling HDD Machine
