200KN Trenchless Boring Machine For Underground Pipe Laying Project , 20 Ton

Name: 200KN Trenchless Boring Machine For Underground Pipe Laying Project 20 Ton
Brand: DILONG
Price: 1 USD

China 200KN Trenchless Boring Machine For Underground Pipe Laying Project , 20 Ton wholesale

Brand Name : DILONG

Model Number : DL200

Place of Origin : NANJING

MOQ : one set

Price : NEED DISCUSS

Payment Terms : D/P, D/A, L/C, T/T

Supply Ability : 100 Units PER YEAR

Delivery Time : After advance payment in 7 days

Packaging Details : HC can contain 1 set machine and spare HDD PARTS

COLOUR : YELLOW

WEIGHT : 7.5T

Max.thrust force : 200KN

Max.pullback force : 200KN

ENGINE : CUMMINS

MUD PRESSURE : 7±0.5Mpa

Contact Now

200KN Trenchless Boring Machine For Underground Pipe Laying Project , 20 Ton

Technical features
1 , This drilling machine is one machine structure, equipped with mud pump system.
2,Cummings engine, power 110Kw.
3 ,The hydraulic system and circuit design is stable and reliable, reasonable power distribution
4,The power head double speed system for unloading drill pipe, improve efficiency.
5 ,Equipped with multi gear speed regulation, which greatly improves the operation efficiency.
6 , Adopt gear rack push pull system, simple structure.
7 , Steel plate covered with rubber track, good strength, convenient installation and maintenance.
8 ,Configure air cooling system.
9,The world first-class brand filter, to ensure stable and reliable system, long service life of equipment.

MAIN TECHINICAL PARAMETERS

Engine	KW	110/2200	Dimension(LWH)	MM	640020502350
Max.thrust force	KN	200	Weight	T	7.5
Max.pullback force	KN	200	Diameter of drill rod	MM	Φ60
Max.torque	N.m	5900	Lendht of drill rod	M	3
Max.rotary speed	rpm	180	Max diameter of pullback pipe	MM	Φ150-Φ700
Max.Moving speed of power head	m/min	30	Max pullback pipe length	m	~300
Max.mud pump flow	L/min	240	Incidence Angle	.	10~22
Max.mud pressure	Mpa	7±0.5	climbing Angle	.	14

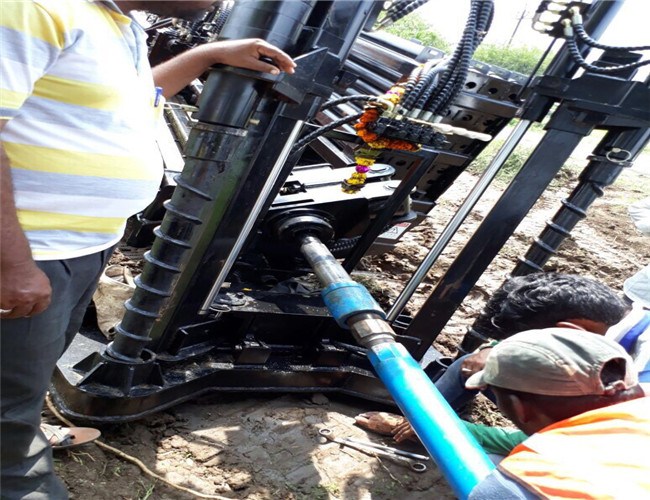

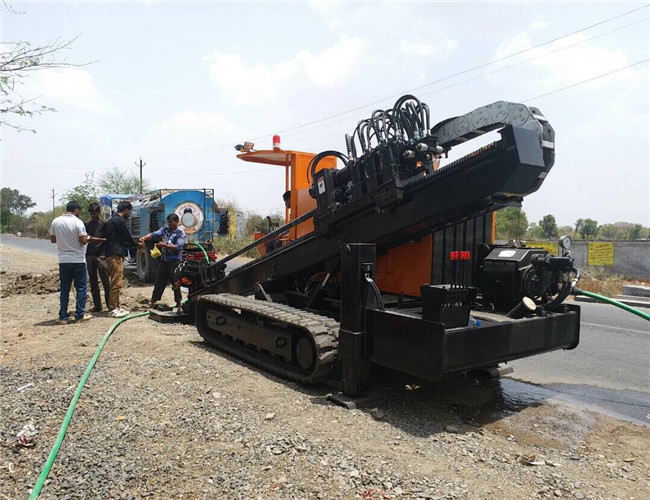

MACHINE WORKS IN INDIA

Product Tags:

no dig equipment

underground pipe laying machine

200KN Trenchless Boring Machine For Underground Pipe Laying Project , 20 Ton Images
