33T Trenchless Hdd Drilling Equipment Pipe Laying Manual Utility Horizontal Directional Drilling
Technical characteristics
1 ,This drilling machine is one machine structure, equipped with mud pump system.
2, Cummings engine, power 153Kw.
3 , The hydraulic system and circuit design is stable and reliable, reasonable power distribution.
4, The power head double speed system for unloading drill pipe, improve efficiency.
5 , Equipped with multi gear speed regulation, which greatly improves the operation efficiency.
6 , Adopt motor rack system with high speed and good reliability.
7 , Steel plate covered with rubber track, good strength, convenient installation and maintenance.
8 , Configure air cooling system.
9, The world first-class brand filter, to ensure stable and reliable system, long service life of equipment
10, Optional afterburner, can increase 33 tons.
11, The clamping device can realize automatic adjustment of the heart, which is a national patented technology product
MAIN TECHNICAL PARAMETERS
| Engine | KW | 153/2200 | Dimension(L*W*H) | MM | 6910*2212*2520 |
| Max.thrust force | KN | 330/660 | Weight | T | 11.8 |
| Max.pullback force | KN | 330/660 | Diameter of drill rod | MM | Φ73 |
| Max.torque | N.m | 13000 | Lendht of drill rod | M | 3 |
| Max.rotary speed | rpm | 120 | Max diameter of pullback pipe | MM | Φ150-Φ180 |
| Max.Moving speed of power head | m/min | 30 | Max pullback pipe length | m | ~150 |
| Max.mud pump flow | L/min | 400 | Incidence Angle | . | 11~20 |
| Max.mud pressure | Mpa | 8±0.5 | climbing Angle | . | 14 |

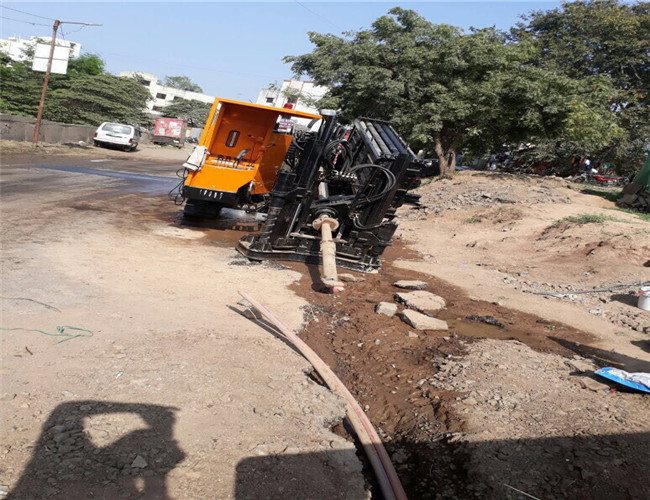

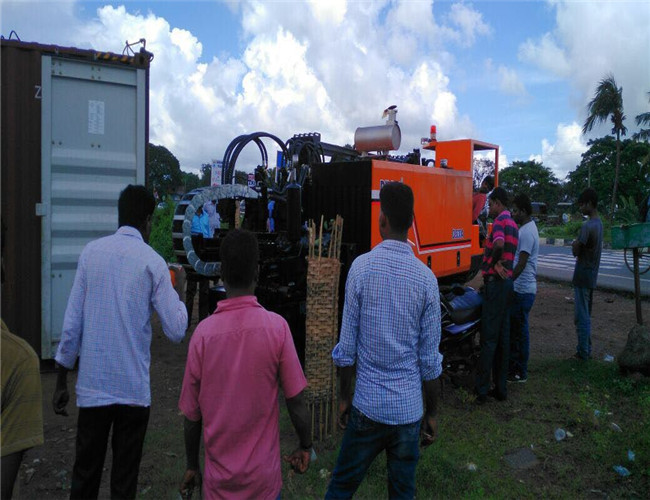

DL330 MACHINE WORKS IN INDIA
