Underground Pipe Laying Hdd Drilling Equipment Hydraulic DFM1504

Name: Underground Pipe Laying Hdd Drilling Equipment Hydraulic DFM1504
Brand: DILONG
Price: 1 USD

China Underground Pipe Laying Hdd Drilling Equipment Hydraulic DFM1504 wholesale

Brand Name : DILONG

Model Number : DFM1504

Place of Origin : NANJING

MOQ : ONE SET

Price : NEED DISCUSS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100 Units PER YEAR

Delivery Time : After advance payment in 7 days

Packaging Details : HC can contain 1 set machine and spare HDD PARTS

COLOUR : YELLOW

WEIGHT : 1.4

DIMENSION : 1295*960*1100

ENGINE : 26.5/2350

THRUST FORCE : 70KN

PULLBACK FORCE : 50KN

Contact Now

underground pipe laying Hydraulic Drilling Rig machine DFM1504

ADVANTAGES

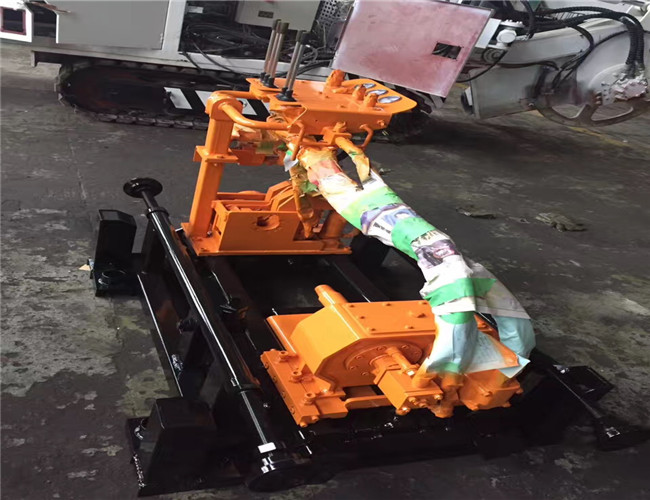

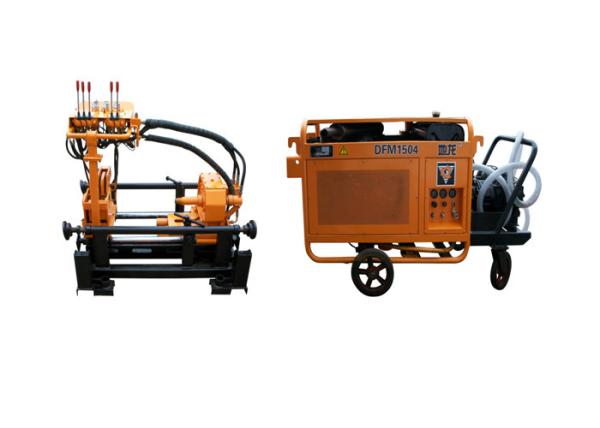

DFM1504 drill is of separated structure,composed of main body and power station,and is characterized by flexible arrangement and easy oparation in a narrow space or pit .By the patented holder,the angle of incidence may be adjusted and the jig can move back and forth.

MAIN TECHNICAL PARAMETERS

Engine	KW	26.5/2350	Dimension(LWH)	MM	12959601100
Max.thrust force	KN	70	Weight	T	1.4
Max.pullback force	KN	50	Diameter of drill rod	MM	Φ50
Max.torque	N.m	1300	Lendht of drill rod	M	0.5
Max.rotary speed	rpm	100	Max diameter of pullback pipe	MM	Φ150-Φ300
Max.Moving speed of power head	m/min	14.5	Max pullback pipe length	m	~80
Max.mud pump flow	L/min	40	Incidence Angle	.	0~10
Max.mud pressure	Mpa	3±0.5	climbing Angle	.

MORE DETAILS

Underground Pipe Laying Hdd Drilling Equipment Hydraulic DFM1504

Whatsapp number:008618936869890

EMAIL:trade@njdl.com

HDD MACHINE, NO DIG MACHINE, DRILLING MACHINE
