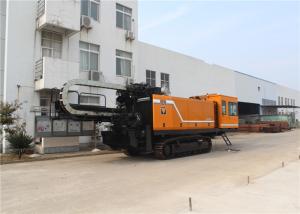

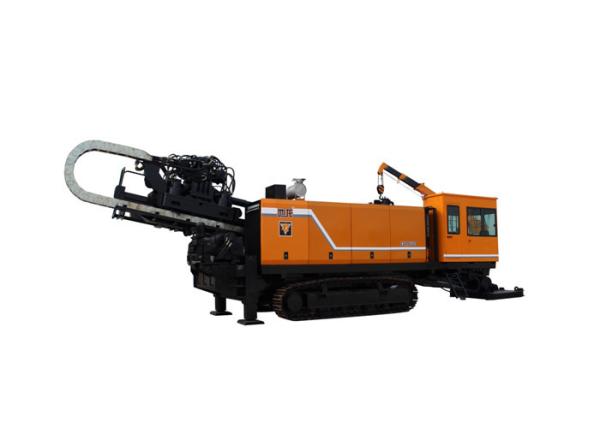

160 Ton Trenchless construction Hydraulic Drilling Rig machinery
INTRODUCES
1, With the use of closed loop of tha main rotation hydraulic system ,DL1600 cralwer integrated horizontal directional drilling machine has better working efficiency
2, It has advanced automatic control system enabling more rational power distribution of the engine.its forced air cooling system enables it to work reliably for long time.
3, Its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.
4, The semi-auto drill pipe holder features simplicity,reliability,easy assembly&disassembly of drill pipe and high efficiency with the use of 3t hoist .
5, The top-end PALL filter can ensure cleanness of the hydraulic system and long service life of the equipment .Operationl force adding module is available for additional 80Tforce.
MAIN TECHNICAL PARAMETERS
| Engine | kw | 409 | Dimension(L*W*H) | mm | 13158*2959*3359 |
| Max.thrust force | KN | 1600/2400 | Weight | T | 40 |
| Max.pullback force | KN | 1600/2400 | Diameter of drill rod | mm | Φ127 |
| Max.torque | N.m | 67000 | Lendht of drill rod | m | 6 |
| Max.Rotary speed | rpm | 80 | Max diameter of pullback pipe | mm | Φ1300 |
| Max.Moving speed of power head | m/min | 28 | Incidence angle | . | 11~17 |
| Max.mud puump flow | L/min | 800 | Climbing angle | . | 15 |
| Max.mud pressure | Mpa | 10±0.5 | | |
|
