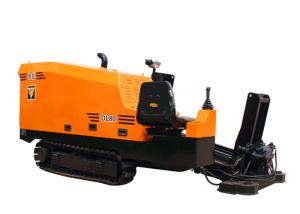

Hydraulic Systems 80KN Directional Boring Machine / Hdd Drilling Rigs For Sale

Name: Hydraulic Systems 80KN Directional Boring Machine Hdd Drilling Rigs For Sale
Brand: DILONG
Price: 1 USD

China Hydraulic Systems 80KN Directional Boring Machine / Hdd Drilling Rigs For Sale wholesale

Brand Name : DILONG

Model Number : DL80

Place of Origin : NANJING

MOQ : one set

Price : NEED DISCUSS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100 Units PER YEAR

Delivery Time : After advance payment in 7 days

Packaging Details : HC can contain 1 set machine and spare HDD PARTS

COLOUR : YELLOW

Weight : 4.2T

Dimension : 4000*1597*2220

THRUST FORCE : 80KN

MUD PRESSURE : 3.5±0,5

MUD FLOW SPEED : 40L/min

Contact Now

Hydraulic Systems 80KN Directional Boring Machine / Hdd Drilling Rigs For Sale

Main component

DL80 horizontal directional drilling machine is a horizontal directional drilling device for one machine. here are chassis, power head, drill rack, power station, vice, hydraulic systems, electrical systems and other components.
1 ,Chassis
The chassis mainly consists of main frame and left and right walking device. The rear end of the frame is provided with a hydraulic support leg
The reducer is selected from Dongming Doosan or South Korea's first hydraulic planetary reducer (including motors),The output torque is large and the structure is compact. The use of wire walking, transition loading and machine adjustment, convenient and safe.

2,Power station unit
The system consists of a diesel engine, a hydraulic pump, an overflow valve, a hydraulic oil tank, a diesel tank and a valve block assembly, accumulator assembly and so on.The power station is powered by a diesel engine and hydraulic pumps are provided for the hydraulic system
High pressure oil is the core part of the rig.
The engine is powered by Japanese Yanmar

3,Push-pull device
The push-pull device drives the gear rack mechanism through the motor to provide the feeding force or the pull back force to the power head,
High strength, reliable and stable operation

4,Hydraulic system
The power head circuit adopts closed hydraulic circuit control system, advanced automatic control system, low speed good stability.

MAIN TECHNICAL PARAMETERS

Engine	KW	47.3/2200	Dimension(LWH)	MM	400015972220
Max.thrust force	KN	80	Weight	T	4.2
Max.pullback force	KN	80	Diameter of drill rod	MM	Φ42
Max.torque	N.m	2200	Lendht of drill rod	M	1.5
Max.rotary speed	rpm	190	Max diameter of pullback pipe	MM	Φ200-Φ500
Max.Moving speed of power head	m/min	33	Max pullback pipe length	m	~80
Max.mud pump flow	L/min	40	Incidence Angle	.	8~20
Max.mud pressure	Mpa	3.5±0.5	climbing Angle	.	14
