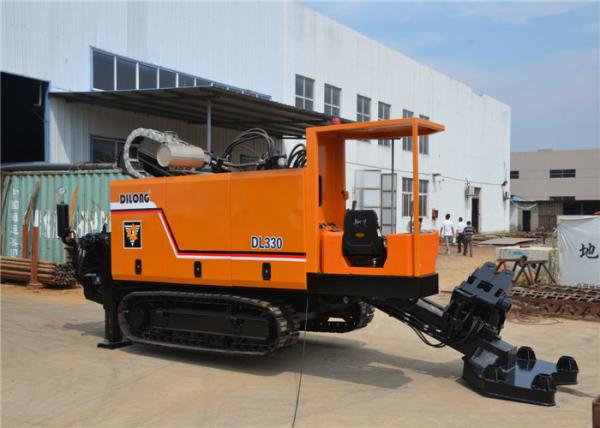

Trenchless Horizontal Directional Drilling Machine For Underground Engineering

Name: Trenchless Horizontal Directional Drilling Machine For Underground Engineering
Brand: DILONG
Price: 1 USD

China Trenchless Horizontal Directional Drilling Machine For Underground Engineering wholesale

Brand Name : DILONG

Model Number : DL330

Place of Origin : NANJING

MOQ : 1 SET

Price : NEED DISCUSS

Payment Terms : D/P, D/A, L/C, T/T

Supply Ability : 100 Units PER YEAR

Delivery Time : After advance payment in 7 days

Packaging Details : HC can contain 1 set machine and spare HDD PARTS

COLOUR : YELLOW

WEIGHT : 33T

Max.thrust force : 330/660

Max.pullback force : 330/660

ENGINE : CUMMINS

Contact Now

Trenchless Horizontal Directional Drilling Machine For Underground Engineering

Technical features
1 ,This drilling machine is one machine structure, equipped with mud pump system.
2, Cummings engine, power 153Kw.
3 , The hydraulic system and circuit design is stable and reliable, reasonable power distribution.
4, The power head double speed system for unloading drill pipe, improve efficiency.
5 , Equipped with multi gear speed regulation, which greatly improves the operation efficiency.
6 , Adopt motor rack system with high speed and good reliability.
7 , Steel plate covered with rubber track, good strength, convenient installation and maintenance.
8 , Configure air cooling system.
9, The world first-class brand filter, to ensure stable and reliable system, long service life of equipment.
10, Optional afterburner, can increase 33 tons.
11, The clamping device can realize automatic adjustment of the heart, which is a national patented technology product..

MAIN TECHINICAL PARAMETERS

Engine	KW	153/2200	Dimension(LWH)	MM	691022122520
Max.thrust force	KN	330/660	Weight	T	11.8
Max.pullback force	KN	330/660	Diameter of drill rod	MM	Φ73
Max.torque	N.m	13000	Lendht of drill rod	M	3
Max.rotary speed	rpm	120	Max diameter of pullback pipe	MM	Φ150-Φ180
Max.Moving speed of power head	m/min	30	Max pullback pipe length	m	~150
Max.mud pump flow	L/min	400	Incidence Angle	.	11~20
Max.mud pressure	Mpa	8±0.5	climbing Angle	.	14
