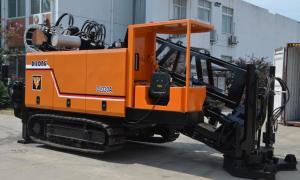

Cable Laying Trenchless Drilling Equipment DL330A With Manual

Name: Cable Laying Trenchless Drilling Equipment DL330A With Manual
Brand: DILONG
Price: 1 USD

China Cable Laying Trenchless Drilling Equipment DL330A With Manual wholesale

Brand Name : DILONG

Model Number : DL330A

Certification : ISO 9001

Place of Origin : NANJING

MOQ : 1 SET

Price : NEED DISCUSS

Payment Terms : D/P, D/A, L/C, T/T

Supply Ability : 100 Units PER YEAR

Delivery Time : After advance payment in 7 days

Packaging Details : HC can contain 1 set machine and spare HDD PARTS

COLOUR : YELLOW

WEIGHT : 13.5T

Max.thrust force : 330/660KN

Max.pullback force : 330/660KN

ENGINE : CUMMINS

TORQUE : 13000N.m

Contact Now

Cable Laying Trenchless Drilling Equipment DL330A With Manual

ADVANTAGES

1, With the use of four-pump hydraulic system ,DL330 drilling machine has better working efficiency and rational power distribution .its forced air cooling system enables it to work reliably for long time.

2, Additionally ,its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.

3, Operationl force adding mechanism is available to provide additional force of 33t,and the holder can realize automatic alignment,and is of national patented product.

MAIN TECHNICAL PARAMETERS

Engine	KW	153/2200	Dimension(LWH)	MM	691022122520
Max.thrust force	KN	330/660	Weight	T	11.8
Max.pullback force	KN	330/660	Diameter of drill rod	MM	Φ73
Max.torque	N.m	13000	Lendht of drill rod	M	3
Max.rotary speed	rpm	120	Max diameter of pullback pipe	MM	Φ150-Φ180
Max.Moving speed of power head	m/min	30	Max pullback pipe length	m	~150
Max.mud pump flow	L/min	400	Incidence Angle	.	11~20
Max.mud pressure	Mpa	8±0.5	climbing Angle	.	14

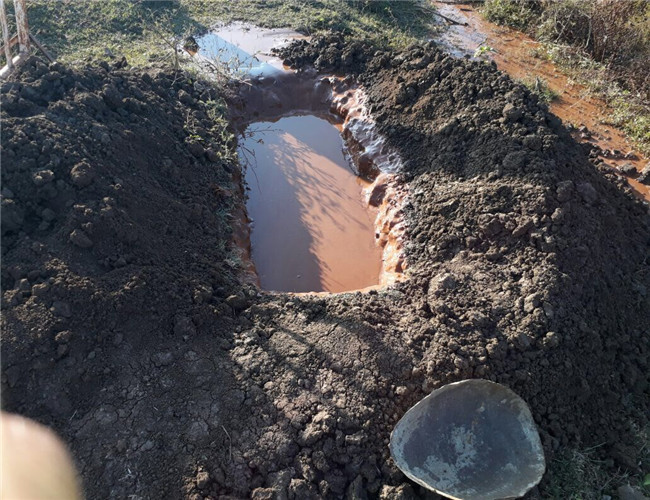

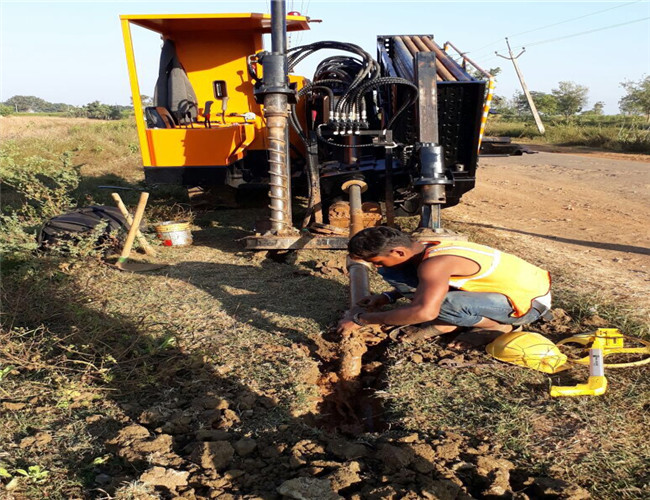

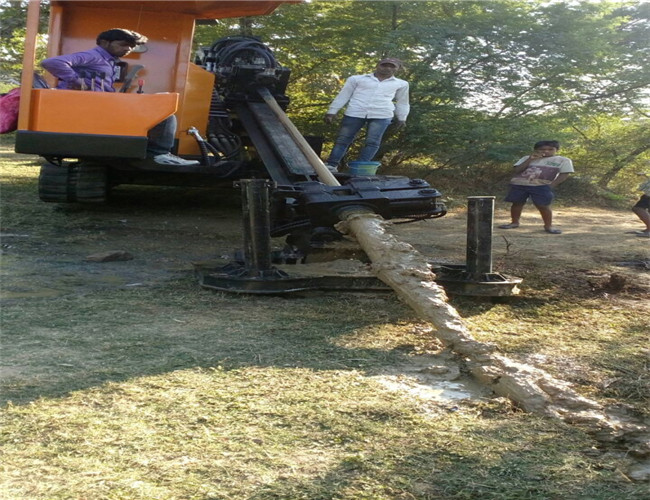

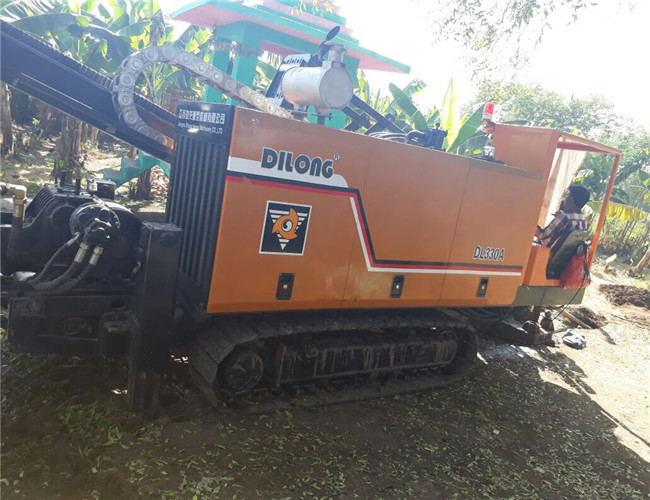

MACHINE WORKS IN INDIA
