66 TON DL660S type Horizontal Directional Drilling Machine 120 RPM ROTARY SPEED

Brand Name : DL

Model Number : DL660S

Place of Origin : CHINA-NANJING

Price : NEED DISCUSS

Delivery Time : After advance payment in 7 days

Supply Ability : 100 Units PER YEAR

Certification : ISO9001

MOQ : 1 SET

Packaging Details : 40 FR CONTAINER FOR FULL SET

ENGINE : 194 KW

THRUST : 660 KN

PULLBACK : 660 KN

TORQUE : 18000 N.M

ROTARY SPEED : 120 RPM

MUD PUMO : 450 L/MIN OR 600 L/MIN

Contact Now

Machine features:

1. DL660S drilling rig is an integral horizontal directional drilling track.

2. The main rotating hydraulic system is a closed loop, so that the machine has higher working efficiency.

3. 194Kw engine power, strong wind cooling system can work reliably for a long time even in the hot area.

4. It has the advantages of compact structure and good climbing ability to transfer and transport equipment more convenient.

5. The use of multi gear stepless speed regulation, in different work conditions can make efficient use of the rig, greatly improving the work efficiency.

Specification:

Engine Power	KW	194/2200	Main machine size	mm	6872x2277x2320
Max Thrust force	KN	660	Weight	T	12.8
Max Pullback force	KN	660	Diameter of drilling rod	mm	Φ83
Max Torque	N.M	18000	Length of drilling rod	m	3
Max Rotary speed	rpm	120	Max diameter of pullback pipe	mm	φ150～φ800
Max Moving speed of power head	m/min	30	Max construction length	m	～900
Max Mud pump flow	L/min	450	Incidence Angle	°	12～25
Max Mud pressure	Mpa	8±0.5	Climing Angle	°	14

Details:

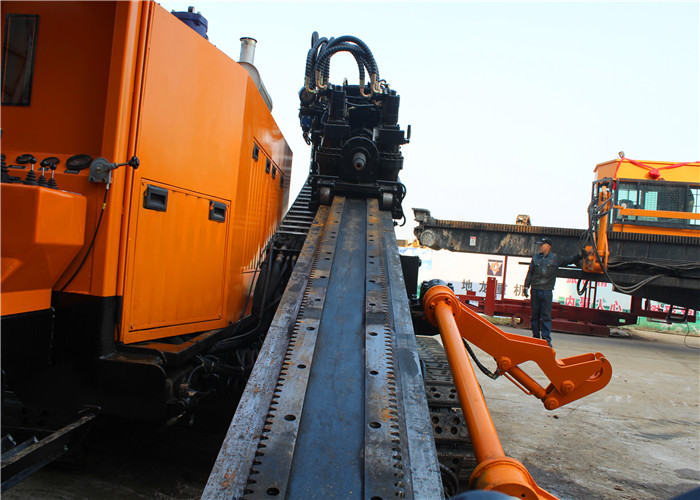

66 TON DL660S type Horizontal Directional Drilling Machine 120 RPM ROTARY SPEED

Whatsapp number:008618936869890, JOHN CHEN

HDD MACHINE, NO DIG MACHINE, DRILLING MACHINE.
